Description
Toro PLH600 Hi-Dump Mower (31041)
- Innovative sensor technology automatically shuts off the mowing deck when the hopper reaches full capacity.

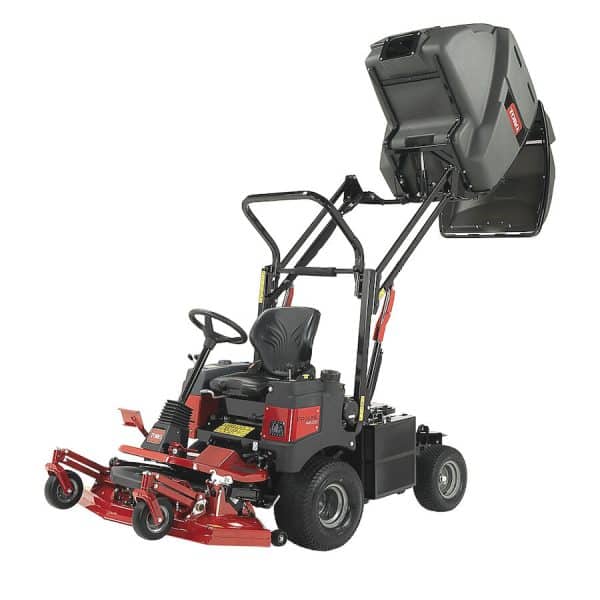

- Dumping clippings is easy with the 1.9 m high lift system which can directly dump into truck beds and trailers.
- With a huge 700 L hopper, you can get the job done efficiently – mow, collect and dispose up to 7,500 m2 per hour

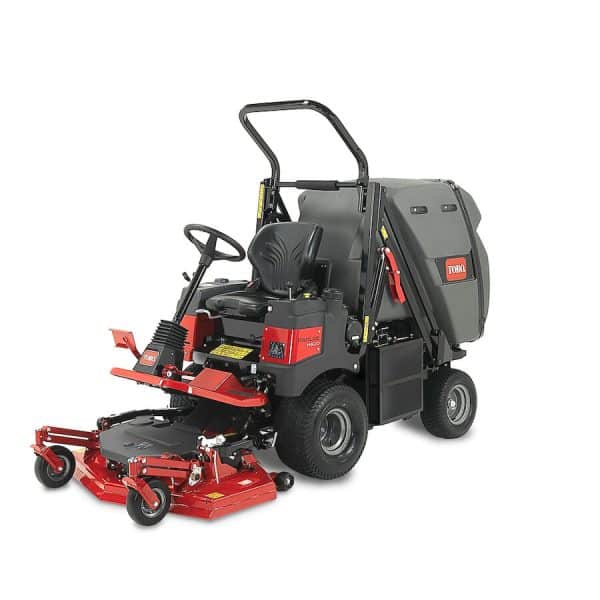

The Toro ProLine H600 rotary mower features a compact width of 1.13 m and turning circle of 64 cm, allowing you to easily get to and around tight spaces. Thanks to its high capacity cutting deck, huge hopper of 700 litres and automatic grass distribution feature, you can get the job done efficiently—mow, collect and dispose up to 1.85 acres (7,500 m2) per hour.
The powerful 18 hp (13.2 kW) Kubota diesel engine is Stage V compliant with a ground speed of up to 8 mph. The innovative sensor technology automatically shuts off the mowing deck when the hopper reaches full capacity. Dumping clippings is easy with the 1.9 m high lift system which can directly dump into truck beds and trailers!
SPECIFICATIONS:
| Controls | Tilt adjustable steering column, Parking brake, Engine throttle lever, Electronic height of cut adjustment, operated from the operator seat, Hydraulic controls for deck lift / lower, hopper lift / lower and hopper tilt, Ignition key switch, PTO switch, Engine hour meter, Forward / Reverse Pedal, Differential lock Pedal, Battery charge indicator, Oil pressure warning indicator, Glow plug indicator, Engine temperature warning indicator, Fuel guage |
|---|---|
| Fuel Capacity | 22 Litres |
| Fuel Type | Diesel |
| Height | 1,930mm (76″) (1,510mm (59.4″) Hopper) |
| Height of Cut Range | 25mm – 90mm (1″ – 3.5″), adjustable from Operator seat |
| Hydraulic Fluid Capacity | 6.7 L |
| Length | 2,710mm |
| Power Train (Engine Description) | Kubota D722 3-Cyl Diesel, Stage V / Tier IV |
| PTO Clutch | Electromagnetic w/ integral blade brake |
| Seat | Grammer w/ fore/aft & backrest adjust |
| Traction Drive | 2WD |
| Turning Circle (Diameter) | 640mm (25.2″) |
| Weight | 635kg |
Come into your local YardWorx store and experience the Toro PLH600 Hi-Dump Mower for yourself!
